Ana sayfa ÜrünlerParlayan Yıldız Gen2 200lm/W Entegre Güneş LED Sokak Işığı

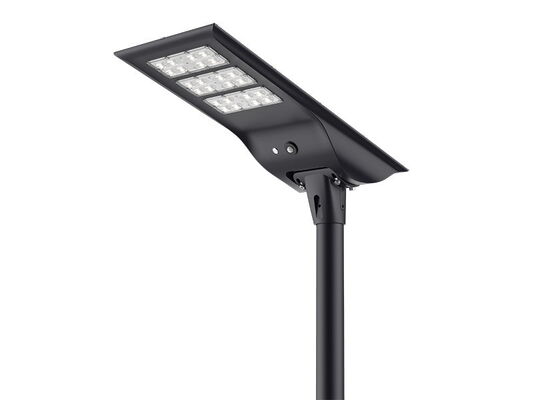

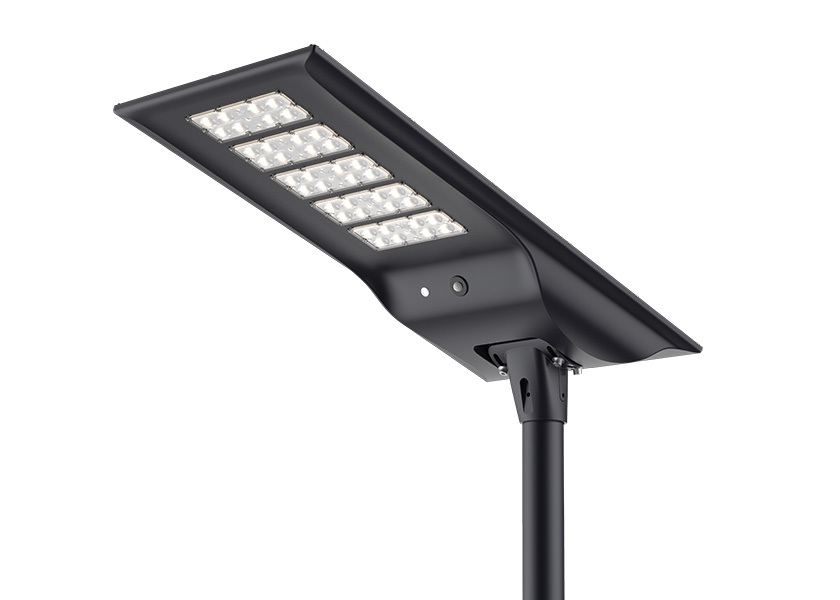

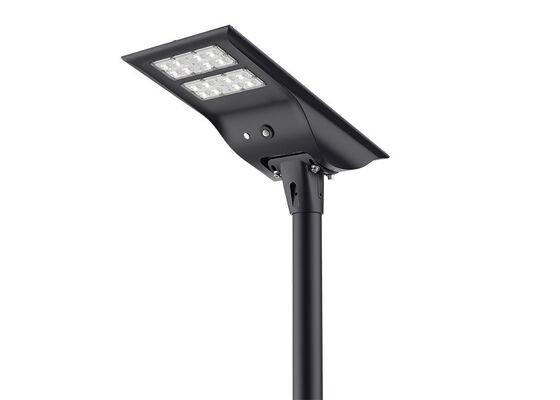

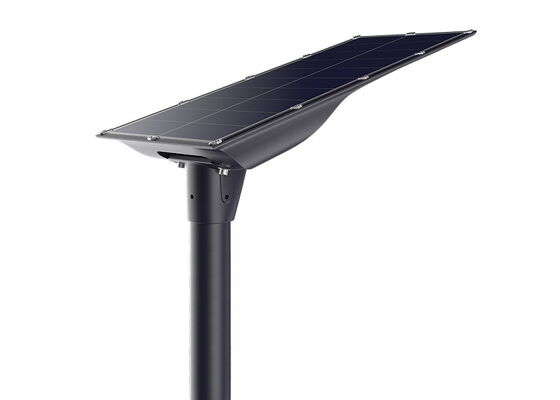

All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty

All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty

    • All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty
    • All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty
    • All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty
    • All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty
    • All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty
    • All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty

    Ürün ayrıntıları:

    Menşe yeri: Çin
    Marka adı: SURPLUS LIGHTING
    Sertifika: TUV CB CE RoHS SAA UKCA
    Model numarası: SL-ST80B2I

    Ödeme & teslimat koşulları:

    Min sipariş miktarı: 1 BİRİM
    Fiyat: 1-100US$/unit
    Ambalaj bilgileri: Standart Paketleme veya Özelleştirilmiş
    Teslim süresi: 10-18 iş günü
    Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Yetenek temini: Aylık 9.000 adet
    Şimdi başvurun
    Detaylı ürün tanımı
    Ömür boyu: 120.000 saat (TM21 raporu) LED marka: Guangyou 5050 / Lumileds LUXEON 5050
    Garanti: Standart olarak 5 yıl Lümen: 220lm/W (LM79 raporu)
    IP derecelendirmesi: IP66 İK derecesi: IK08
    SKK: 1700-6500K / PC Amber pil: LiFePO4 12.8V
    Nominal güç: 80W Tip: Hepsi Bir Arada Entegre Solar Sokak Lambası
    Deşarj Süresi: 36~40 saat İşlev: PIR sensörü ve ışık kontrolü
    Vurgulamak:

    80W solar street light with PIR sensor

    ,

    IP66 solar LED street light

    ,

    TUV certified solar lighting

    All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty

    All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty



    SHINING-STAR GEN2 Series 220lm/W 80W IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty All in One Solar Light



    Part No. SL-ST30B2 SL-ST40B2 SL-ST50B2 SL-ST60B2 SL-ST80B2
    Solar Panel Parameters Monocrystalline 18V 40W Monocrystalline 18V 50W

    Monocrystalline 18V 66W



    Monocrystalline 18V 80W



    Monocrystalline 18V 100W


    Battery Parameters LiFePO4 12.8V 18AH LiFePO4 12.8V 24AH LiFePO4 12.8V 30AH LiFePO4 12.8V 36AH LiFePO4 12.8V 42AH
    System Voltage 12V
    LED Brand Lumileds 5050 / TYF5050
    Light Distribution TYPE II Medium 70°x165°
    CCT 1700K~6500K/ PC AMBER / 1700K<1% blue
    Charge Time 6 hours
    Working Time 3-4 Days (Auto Control)
    Protection Grade IP66(TUV IP66 report), IK08
    Luminous Efficiency 220 lm/W (LM79 report)
    Operating Temperature -20℃ to 60℃
    Warranty 5 Years
    Main Materials ADC12 Die-cast housing, optical PC lens
    Luminous Flux 6600 lm 8800 lm 11000 lm 13200 lm 17600 lm
    Rated Power 30W 40W 50W 60W 80W

    Tested
    according to

    		 IEC 62321-1:2013, IEC 62321-2:2021,
    IEC 62321-3-1:2013, IEC 62321-5:2013,
    IEC 62321-4:2013+AMD1:2017 CSV,
    IEC 62321-6:2015, IEC 62321-7-1:2015,
    IEC 62321-7-2:2017, IEC 62321-8:2017



    Working time data is based on charging 6 hours in the sunny summer, measured in north latitude 22°, east diameter 113°, Actual working time may be changed due to different installation area, season, environment, direction etc.



    Maintenance of SHINING-STAR GEN2 series 220LM/W IP66 Integrated Solar LED Street Light 5 Years Warranty



    (1) Solar controller is the core component of solar street lights, which has the function of light control, time control, charging and discharging, etc. Keep it dry in use, and do not touch the buttons at discretion. Malfunction must operate in professional instruction.

    (2) Solar panel is the longest life span component in the solar street light, which can be used for 35 years. And in use if it doesn't rain for days, the surface of the solar panel will gather much dust, which will affect the power generating efficiency, need manual cleaning when necessary. Keep the solar panel towards the south, correct it timely if there is swing.

    (3) LED light source has a long service life, general failure rate is extremely low. Dirt cleaning of the whole light source is needed when using 2 to 3 years in case the dirt resists electricity and reduce the brightness of lights.

    (4) The battery itself has certain self-discharge, when the All In One Solar Light is not in use for a long time, please take out the light regularly for charging in the sun.



    Trouble shooting for SHINING-STAR GEN2 series IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty



    Phenomenon Cause Inspection methods Solution

    Lights

    not work

    		 Switch does not turn on Check whether the switch turns on Turn on the switch
    Switch failure Make the switch short circuit, if it is still lighting up, could judge the switch failure. Replace Switch
    Battery runs out Long rainy day or wrong installation site could not charge enough power. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, then could judge battery runs out or low power cause system could not work. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery.
    LED Failure Firstly, adjust the DC power supply to voltage 9V and current less than 1A, then connect the positive and negative electrode of DC power supply to LED, if LED could not light, could judge LED failure. If confirming LED failure, please contact us to return and replace.

    Short

    lighting time

    		 Low battery

    Wrong installation or dust and leaves cover on solar panel cause not enough solor power to battery.

    1. Check whether there is dust or leaves covering on the solar panel. 2. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, that could judge battery runs out or low power cause system could not work.

    1. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery.

    2. Clean the solar panel.
    Battery Failure

    Open the light and check if battery is dispalced or outer has been damaged .

    Battery maturing, lights used more than 2 years.

    1. If damage caused by transportation, please return to our factory for repairing or replacement.

    2. Contact us to buy the same type battery if battery maturing.
    No induct Sensor Failure Move in the range of detection under the half power lighting condition, if light not turns to full power ,could judge the sensor failure. If confirming failure caused by controller or sensor, please return to our factory for repairing or replacement.
    Flashing light Controller (timer) setting wrong Intelligent mode opens due to an exceeding output power of the controller and light flashing. Return to our factory to reset or replace the products.





    All in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years WarrantyAll in One Solar Street Light 80W IP66 Integrated Solar LED Street Light With PIR Sensor TUV CB CE SAA Certified Solar Lighting 5 Years Warranty
